Nested Logit and Non-Proportional Patterns of Substitution#

import arviz as az
import matplotlib.pyplot as plt
import pandas as pd
from pymc_extras.prior import Prior

from pymc_marketing.customer_choice.nested_logit import NestedLogit
from pymc_marketing.paths import data_dir

Hide code cell output


/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/pymc_marketing/mmm/multidimensional.py:218: FutureWarning: This functionality is experimental and subject to change. If you encounter any issues or have suggestions, please raise them at: https://github.com/pymc-labs/pymc-marketing/issues/new
  warnings.warn(warning_msg, FutureWarning, stacklevel=1)
/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/pymc_marketing/mmm/time_slice_cross_validation.py:32: UserWarning: The pymc_marketing.mmm.builders module is experimental and its API may change without warning.
  from pymc_marketing.mmm.builders.yaml import build_mmm_from_yaml

az.style.use("arviz-darkgrid")
plt.rcParams["figure.figsize"] = [12, 7]
plt.rcParams["figure.dpi"] = 100
%config InlineBackend.figure_format = "retina"

We’ve seen in the other example notebook for consumer choice how the Multinomial Logit model suffers from the IIA limitation that leads to implausible counterfactual inferences regarding market behaviour. If you haven’t read that one, we advise you read it before continuing. We will now show how the nested logit model specification avoids this property by adding more explicit structure to the choice scenarios that are modelled.

In this notebook we will re-use the same heating choice data set seen in the Multinomial Logit example and apply a few different specifications of a nested logit model.

data_path = data_dir / "choice_wide_heating.csv"
df = pd.read_csv(data_path)
df
idcase depvar ic_gc ic_gr ic_ec ic_er ic_hp oc_gc oc_gr oc_ec oc_er oc_hp income agehed rooms region
0 1 gc 866.00 962.64 859.90 995.76 1135.50 199.69 151.72 553.34 505.60 237.88 7 25 6 ncostl
1 2 gc 727.93 758.89 796.82 894.69 968.90 168.66 168.66 520.24 486.49 199.19 5 60 5 scostl
2 3 gc 599.48 783.05 719.86 900.11 1048.30 165.58 137.80 439.06 404.74 171.47 4 65 2 ncostl
3 4 er 835.17 793.06 761.25 831.04 1048.70 180.88 147.14 483.00 425.22 222.95 2 50 4 scostl
4 5 er 755.59 846.29 858.86 985.64 883.05 174.91 138.90 404.41 389.52 178.49 2 25 6 valley
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
895 896 gc 766.39 877.71 751.59 869.78 942.70 142.61 136.21 474.48 420.65 203.00 6 20 4 mountn
896 897 gc 1128.50 1167.80 1047.60 1292.60 1297.10 207.40 213.77 705.36 551.61 243.76 7 45 7 scostl
897 898 gc 787.10 1055.20 842.79 1041.30 1064.80 175.05 141.63 478.86 448.61 254.51 5 60 7 scostl
898 899 gc 860.56 1081.30 799.76 1123.20 1218.20 211.04 151.31 495.20 401.56 246.48 5 50 6 scostl
899 900 gc 893.94 1119.90 967.88 1091.70 1387.50 175.80 180.11 518.68 458.53 245.13 2 65 4 ncostl

900 rows × 16 columns

Single Layer Nesting#

The important addition gained through the nested logit specification is the ability to specify “nests” of products in this way we can partition the market into “natural” groups of competing products ensuring that there is an inherent bias in the model towards a selective pattern of preference. As before we specify the models using formulas, but now we also add a nesting structure.

## No Fixed Covariates
utility_formulas = [
    "gc ~ ic_gc + oc_gc |",
    "ec ~ ic_ec + oc_ec | ",
    "gr ~ ic_gr + oc_gr | ",
    "er ~ ic_er + oc_er | ",
    "hp ~ ic_hp + oc_hp | ",
]


nesting_structure = {"central": ["gc", "ec", "hp"], "room": ["gr", "er"]}


nstL_1 = NestedLogit(
    df,
    utility_formulas,
    "depvar",
    covariates=["ic", "oc"],
    nesting_structure=nesting_structure,
    alphas_nests=True,
)
nstL_1

<pymc_marketing.customer_choice.nested_logit.NestedLogit at 0x173a81940>

We will dwell a bit on the manner in which these nests are specified and why. The nested logit model partitions the choice set into nests of alternatives that share common unobserved attributes (i.e., are more similar to each other). It computes the overall probability of choosing an alternative as the product of (1) The probability of choosing a nest (marginal probability), and (2) the probability of choosing an alternative within that nest (conditional probability, given that nest). In our case we want to isolate the probability of choosing a central heatings system and a room based heating system.

Each of the alternatives alt is indexed to a nest. So that we can determine (§) the marginal probability of choosing room or central and (2) conditional probability of choosing ec given that you have chosen central. Our utilities are decomposed into contributions from fixed_covariates and alternative specific covariates:

\(U = Y + W + \epsilon\)

and the probabilities are derived from these decomposed utilitiies in the following manner.

\[ P(i) = P( \text{choose nest B}) \cdot P( \text{choose i} | \text{ i } \in \text{B}) \]

where

\[ P(\text{choose nest B}) = \dfrac{e^{W + \lambda_{k}I_{k}}}{\sum_{l=1}^{K} e^{W + \lambda_{l}I_{l}}} \]

and

\[ P(\text{choose i} | \text{ i} \in \text{B}) = \dfrac{e^{Y_{i} / \lambda_{k}}}{\sum_{j \in B_{k}} e^{Y_{j} / \lambda_{k}}} \]

while the inclusive term \(I_{k}\) is:

\[I_{k} = ln \sum_{j \in B_{k}} e^{Y_{j} / \lambda_{k}} \text{ and } \lambda_{k} \sim Beta(1, 1)\]

such that \(I_{k}\) is used to “aggregate” utilities within a nest a “bubble up” their contribution to decision through the product of the marginal and conditional probabilities. More extensive details of this mathematical formulation can be found in Kenneth Train’s “Discrete Choice Methods with Simulation”.

nstL_1.sample(
    fit_kwargs={
        "idata_kwargs": {"log_likelihood": True},
        "nuts_sampler": "nutpie",
        "progressbar": True,
    }
)

Sampling: [alphas_, alphas_nests, betas, lambdas_nests, likelihood]
/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/pymc/sampling/mcmc.py:328: UserWarning: `idata_kwargs` are currently ignored by the nutpie sampler
  warnings.warn(

Sampler Progress

Total Chains: 4

Active Chains: 0

Finished Chains: 4

Sampling for a minute

Estimated Time to Completion: now

Progress Draws Divergences Step Size Gradients/Draw
2000 0 0.11 63
2000 1 0.12 175
2000 2 0.11 95
2000 1 0.11 63
Sampling: [likelihood]



<pymc_marketing.customer_choice.nested_logit.NestedLogit at 0x173a81940>









The model structure is quite a bit more complicated now than the simpler multinomial logit as we need to calculate the marginal and conditional probabilities within each of the nests seperately and then “bubble up” the probabilies as a product over the branching nests. These probabilities are deterministic functions of the summed utilities and are then fed into our categorical likelihood to calibrate our parameters against the observed data.






nstL_1.graphviz()








../../_images/c7e25038286ab2b97098f46aad53349e5851781e382b4365a05843f657dd3924.svg





But again we are able to derive parameter estimates for the drivers of consumer choice and consult the model implications is in a standard Bayesian model.






az.summary(
    nstL_1.idata,
    var_names=["betas", "alphas", "lambdas_nests", "alphas_nests"],
    round_to=5,
)









/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/arviz/stats/diagnostics.py:991: RuntimeWarning: invalid value encountered in scalar divide
  varsd = varvar / evar / 4













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      betas[ic]
      -0.00245
      0.00071
      -0.00382
      -0.00114
      0.00001
      0.00001
      3100.30564
      2664.58751
      1.00095




      betas[oc]
      -0.00617
      0.00165
      -0.00930
      -0.00317
      0.00004
      0.00003
      1798.24975
      1576.41780
      1.00171




      alphas[gc]
      1.12221
      0.29903
      0.57939
      1.71076
      0.00647
      0.00462
      2128.38565
      2277.73719
      1.00115




      alphas[ec]
      1.20962
      0.43109
      0.40850
      1.99476
      0.00952
      0.00687
      2043.42174
      2164.58576
      1.00033




      alphas[gr]
      -0.64209
      3.64331
      -7.16379
      6.69013
      0.16307
      0.09298
      502.30586
      735.44040
      1.00538




      alphas[er]
      0.72538
      3.64851
      -6.06945
      7.58250
      0.16347
      0.09275
      503.42563
      696.82660
      1.00494




      alphas[hp]
      0.00000
      0.00000
      0.00000
      0.00000
      0.00000
      NaN
      4000.00000
      4000.00000
      NaN




      lambdas_nests[central]
      0.82972
      0.12952
      0.59742
      0.99990
      0.00371
      0.00264
      1258.11306
      1893.71359
      1.00190




      lambdas_nests[room]
      0.78966
      0.14615
      0.53154
      0.99998
      0.00315
      0.00204
      1722.77268
      1141.52465
      1.00175




      alphas_nests[central]
      0.68631
      0.71647
      -0.67748
      1.99964
      0.01827
      0.01451
      1536.95101
      1524.19559
      1.00477




      alphas_nests[room]
      -0.67159
      0.71305
      -2.07221
      0.59883
      0.01833
      0.01457
      1511.39872
      1587.96716
      1.00482










Here we see additionally lambda parameters for each of the nests. These terms measure how strongly correlated the unobserved utility components are for alternatives within the same nest. Closer to 0 indicates a high correlation, substitution happens mostly within the nest. Whereas a value closer to 1 implies lower within nest correlation suggesting IIA approximately holds within the nest. The options available for structuring a market can be quite extensive. As we might have “nests within nests” where the conditional probabilities flow through successive choices within segments of the market.

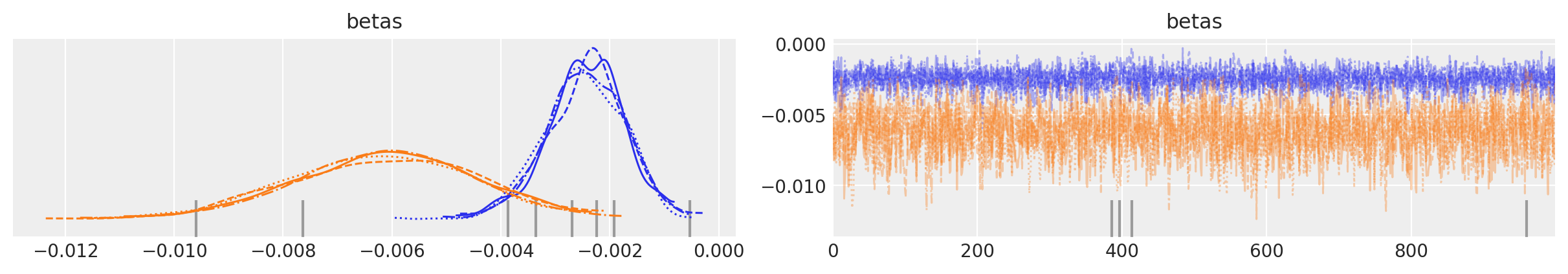

az.plot_trace(nstL_1.idata, var_names=["betas"]);








../../_images/fe13ad6df89595ee9be3856fdb32e284f7accfffeeae61e532cb71c3a3b72bb5.png






Again the parameter estimates seem to be recovered sensibly on the beta coefficients, but the question remains as to whether this additional nesting structure will help support plausible counterfactual reasoning. Note how the model struggles to identify the the intercept terms and places weight on






Making Interventions in Structured Markets#






new_policy_df = df.copy()
new_policy_df[["ic_ec", "ic_er"]] = new_policy_df[["ic_ec", "ic_er"]] * 1.5

idata_new_policy_1 = nstL_1.apply_intervention(new_choice_df=new_policy_df)









Sampling: [likelihood]











Here we can see that both nesting structures recover non-proportional patterns of product substitution. We have elided the IIA feature of the multinomial logit and can continue to assess whether or not the behaviour implications of these utility theory makes sense.






change_df_1 = nstL_1.calculate_share_change(nstL_1.idata, nstL_1.intervention_idata)
change_df_1

















      policy_share
      new_policy_share
      relative_change




      product









      gc
      0.635648
      0.703700
      0.107059




      ec
      0.071388
      0.026369
      -0.630621




      gr
      0.149848
      0.179990
      0.201150




      er
      0.087477
      0.028179
      -0.677865




      hp
      0.055640
      0.061762
      0.110034

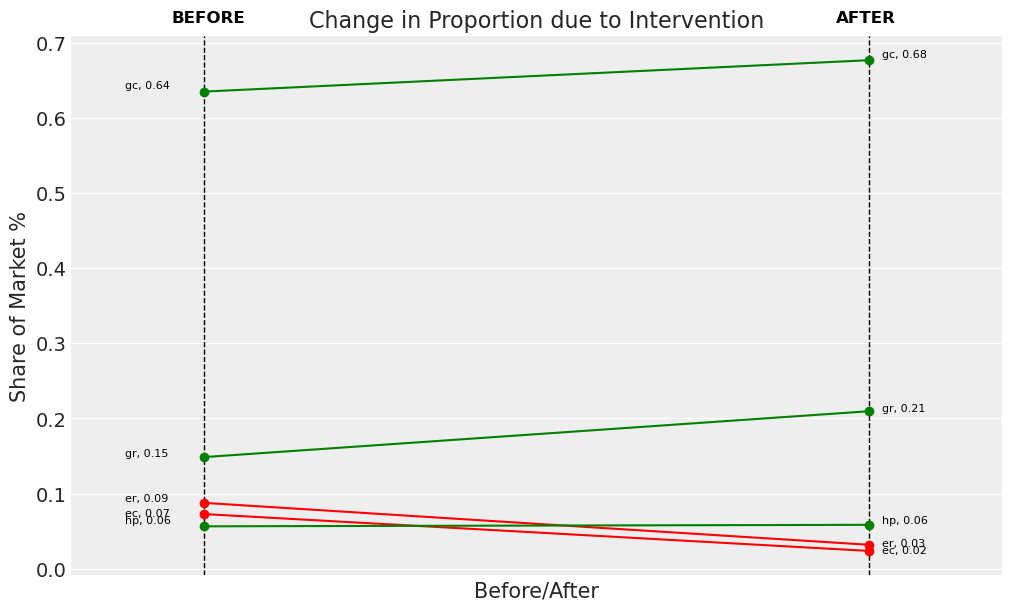

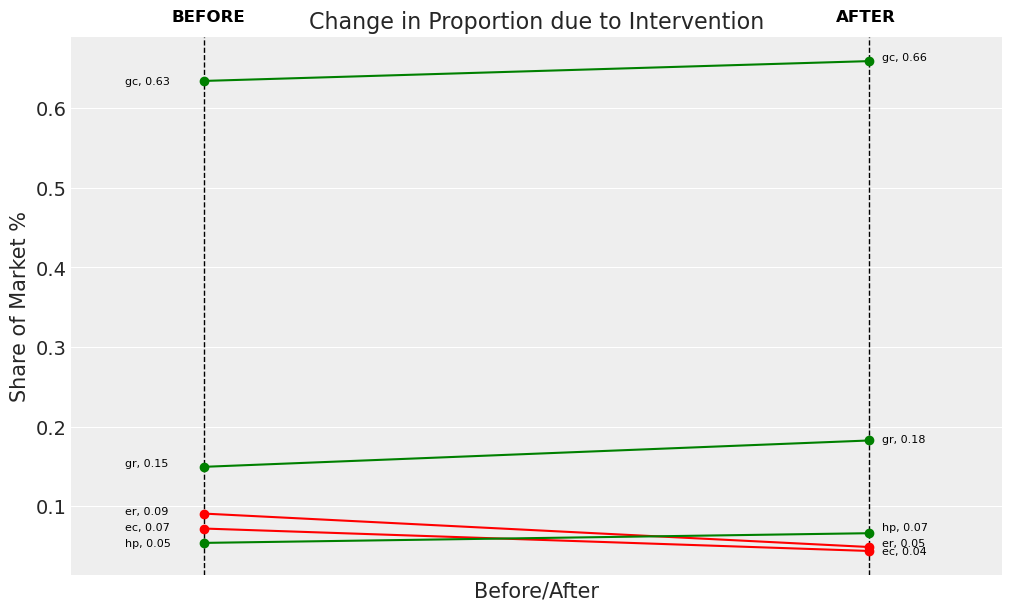

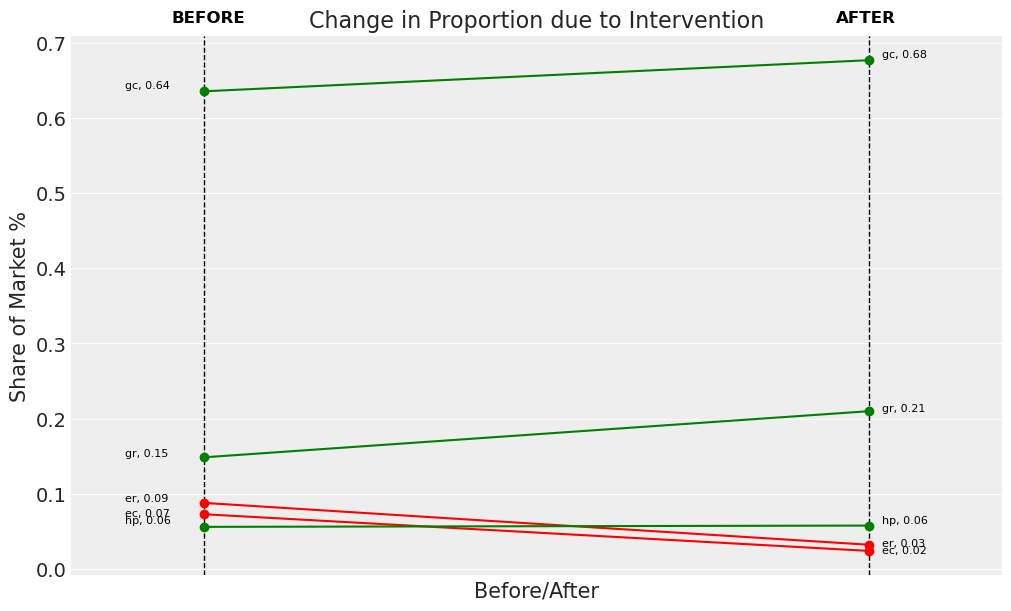

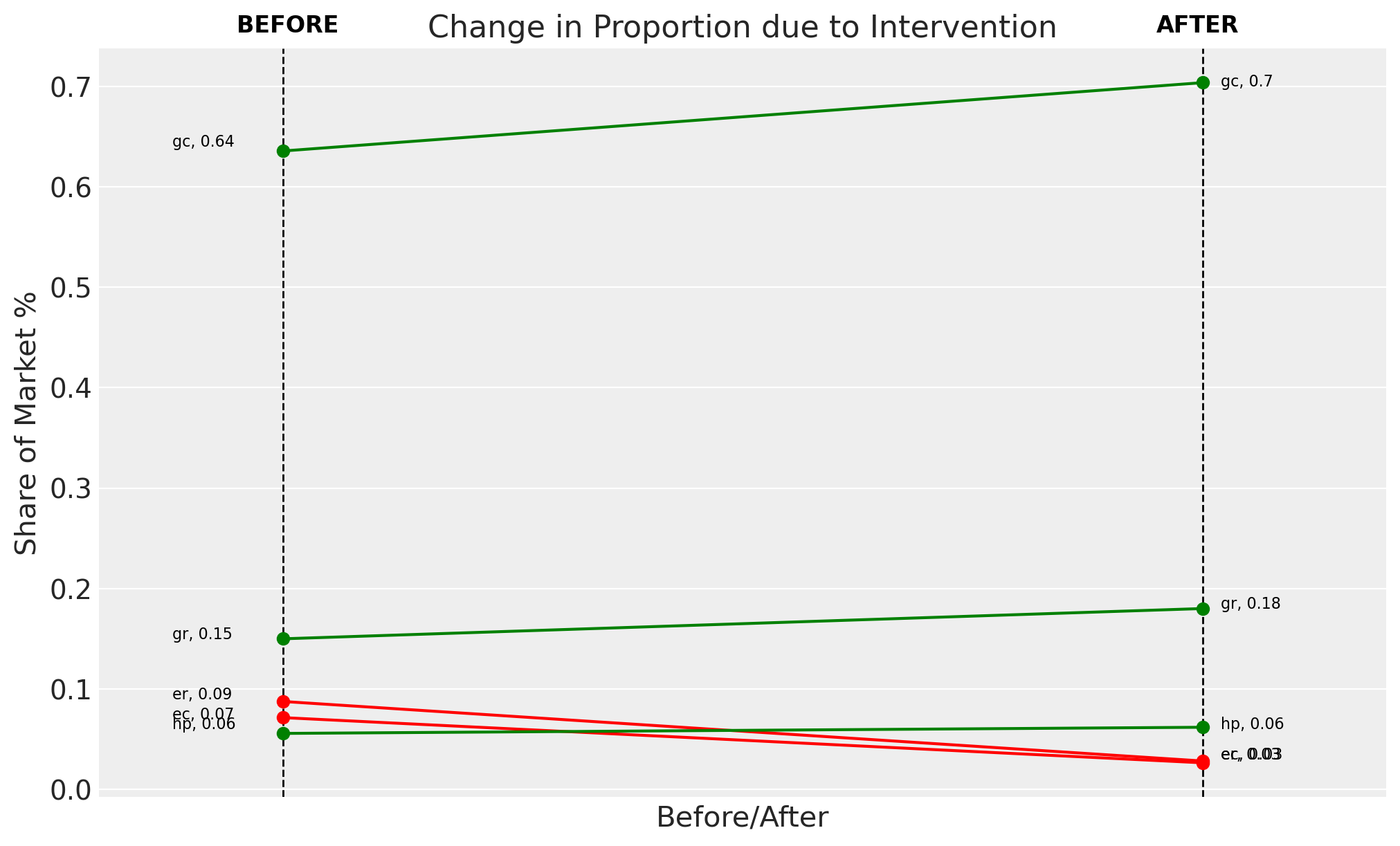

Visualising the Substitution Patterns#






fig = nstL_1.plot_change(change_df=change_df_1, figsize=(10, 6))








../../_images/738d6a5b3c8e12bc5c0998d5324c9a6ec96626d74601f94c8800551e4d36ed4d.png






We can additionally test counterfactuals about the removal of products from the market.






fit_kwargs = {
    "target_accept": 0.97,
    "tune": 2000,
    "nuts_sampler": "nutpie",
    "idata_kwargs": {"log_likelihood": True},
    "progressbar": False,
}

new_policy_df = nstL_1.choice_df.copy()
new_policy_df = new_policy_df[
    (new_policy_df["depvar"] != "hp") & (new_policy_df["depvar"] != "gr")
]

new_utility_formulas = [
    "gc ~ ic_gc + oc_gc | income",
    "ec ~ ic_ec + oc_ec | income ",
    "er ~ ic_er + oc_er | income  ",
]
nstL_1.nesting_structure = {"central": ["gc", "ec"], "room": ["er"]}
nstL_1.alternatives = ["gc", "ec", "er"]
idata_new_policy_3 = nstL_1.apply_intervention(
    new_choice_df=new_policy_df,
    new_utility_equations=new_utility_formulas,
    fit_kwargs=fit_kwargs,
)

change_df_3 = nstL_1.calculate_share_change(nstL_1.idata, nstL_1.intervention_idata)
change_df_3









Sampling: [alphas_, alphas_nests, betas, betas_fixed_, lambdas_nests, likelihood]
/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/pymc/sampling/mcmc.py:328: UserWarning: `idata_kwargs` are currently ignored by the nutpie sampler
  warnings.warn(
Sampling: [likelihood]















      policy_share
      new_policy_share
      relative_change




      product









      gc
      0.635648
      0.792997
      0.247541




      ec
      0.071388
      0.089120
      0.248388




      gr
      0.149848
      0.000000
      -1.000000




      er
      0.087477
      0.117884
      0.347599




      hp
      0.055640
      0.000000
      -1.000000














A Different Market#


Let’s now briefly look at a different market that highlights a limitation of the nested logit model.






data_path = data_dir / "choice_crackers.csv"
df_new = pd.read_csv(data_path)
last_chosen = pd.get_dummies(df_new["lastChoice"]).drop("private", axis=1).astype(int)
last_chosen.columns = [col + "_last_chosen" for col in last_chosen.columns]
df_new[last_chosen.columns] = last_chosen
df_new

















      personId
      disp_sunshine
      disp_keebler
      disp_nabisco
      disp_private
      feat_sunshine
      feat_keebler
      feat_nabisco
      feat_private
      price_sunshine
      price_keebler
      price_nabisco
      price_private
      choice
      lastChoice
      personChoiceId
      choiceId
      keebler_last_chosen
      nabisco_last_chosen
      sunshine_last_chosen






      0
      1
      0
      0
      0
      0
      0
      0
      0
      0
      0.99
      1.09
      0.99
      0.71
      nabisco
      nabisco
      1
      1
      0
      1
      0




      1
      1
      1
      0
      0
      0
      0
      0
      0
      0
      0.49
      1.09
      1.09
      0.78
      sunshine
      nabisco
      2
      2
      0
      1
      0




      2
      1
      0
      0
      0
      0
      0
      0
      0
      0
      1.03
      1.09
      0.89
      0.78
      nabisco
      sunshine
      3
      3
      0
      0
      1




      3
      1
      0
      0
      0
      0
      0
      0
      0
      0
      1.09
      1.09
      1.19
      0.64
      nabisco
      nabisco
      4
      4
      0
      1
      0




      4
      1
      0
      0
      0
      0
      0
      0
      0
      0
      0.89
      1.09
      1.19
      0.84
      nabisco
      nabisco
      5
      5
      0
      1
      0




      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...
      ...




      3151
      136
      0
      0
      0
      0
      0
      0
      0
      0
      1.09
      1.19
      0.99
      0.55
      private
      private
      9
      3152
      0
      0
      0




      3152
      136
      0
      0
      0
      1
      0
      0
      0
      0
      0.78
      1.35
      1.04
      0.65
      private
      private
      10
      3153
      0
      0
      0




      3153
      136
      0
      0
      0
      0
      0
      0
      0
      0
      1.09
      1.17
      1.29
      0.59
      private
      private
      11
      3154
      0
      0
      0




      3154
      136
      0
      0
      0
      0
      0
      0
      0
      0
      1.09
      1.22
      1.29
      0.59
      private
      private
      12
      3155
      0
      0
      0




      3155
      136
      0
      0
      0
      0
      0
      0
      0
      0
      1.29
      1.04
      1.23
      0.59
      private
      private
      13
      3156
      0
      0
      0






3156 rows × 20 columns










utility_formulas = [
    "sunshine ~ disp_sunshine + feat_sunshine + price_sunshine ",
    "keebler ~ disp_keebler + feat_keebler + price_keebler  ",
    "nabisco ~ disp_nabisco + feat_nabisco + price_nabisco  ",
    "private ~ disp_private + feat_private + price_private  ",
]


nesting_structure = {
    "private": ["private"],
    "brand": ["keebler", "sunshine", "nabisco"],
}


nstL_3 = NestedLogit(
    choice_df=df_new,
    utility_equations=utility_formulas,
    depvar="choice",
    covariates=["disp", "feat", "price"],
    nesting_structure=nesting_structure,
    model_config={
        "alphas_": Prior("Normal", mu=0, sigma=1, dims="alts"),
        "betas": Prior("Normal", mu=0, sigma=1, dims="alt_covariates"),
        "lambdas_nests": Prior("Beta", alpha=1, beta=1, dims="nests"),
    },
    alphas_nests=False,
)
nstL_3









<pymc_marketing.customer_choice.nested_logit.NestedLogit at 0x29438e5d0>













nstL_3.sample(
    fit_kwargs={
        "target_accept": 0.95,
        "tune": 2000,
        "nuts_sampler": "nutpie",
        "progressbar": True,
    }
)









Sampling: [alphas_, betas, lambdas_nests, likelihood]












Sampler Progress


Total Chains: 4


Active Chains: 0



        Finished Chains:
        4



Sampling for a minute



        Estimated Time to Completion:
        now










                Progress
                Draws
                Divergences
                Step Size
                Gradients/Draw











                    3000
                    0
                    0.17
                    31









                    3000
                    0
                    0.17
                    7









                    3000
                    0
                    0.18
                    31









                    3000
                    0
                    0.17
                    31










Sampling: [likelihood]







<pymc_marketing.customer_choice.nested_logit.NestedLogit at 0x29438e5d0>













az.summary(
    nstL_3.idata,
    var_names=["alphas", "betas"],
)









/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)
/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/arviz/stats/diagnostics.py:991: RuntimeWarning: invalid value encountered in scalar divide
  varsd = varvar / evar / 4













      mean
      sd
      hdi_3%
      hdi_97%
      mcse_mean
      mcse_sd
      ess_bulk
      ess_tail
      r_hat






      alphas[sunshine]
      -0.968
      0.606
      -2.023
      0.220
      0.026
      0.018
      511.0
      645.0
      1.02




      alphas[keebler]
      -0.400
      0.604
      -1.449
      0.805
      0.027
      0.018
      507.0
      682.0
      1.02




      alphas[nabisco]
      1.361
      0.605
      0.320
      2.562
      0.027
      0.018
      499.0
      599.0
      1.02




      alphas[private]
      0.000
      0.000
      0.000
      0.000
      0.000
      NaN
      4000.0
      4000.0
      NaN




      betas[disp]
      0.098
      0.087
      -0.064
      0.254
      0.001
      0.001
      4290.0
      2861.0
      1.00




      betas[feat]
      0.336
      0.143
      0.075
      0.607
      0.002
      0.002
      4785.0
      3045.0
      1.00




      betas[price]
      -3.592
      0.318
      -4.159
      -2.974
      0.005
      0.005
      3520.0
      2583.0
      1.00

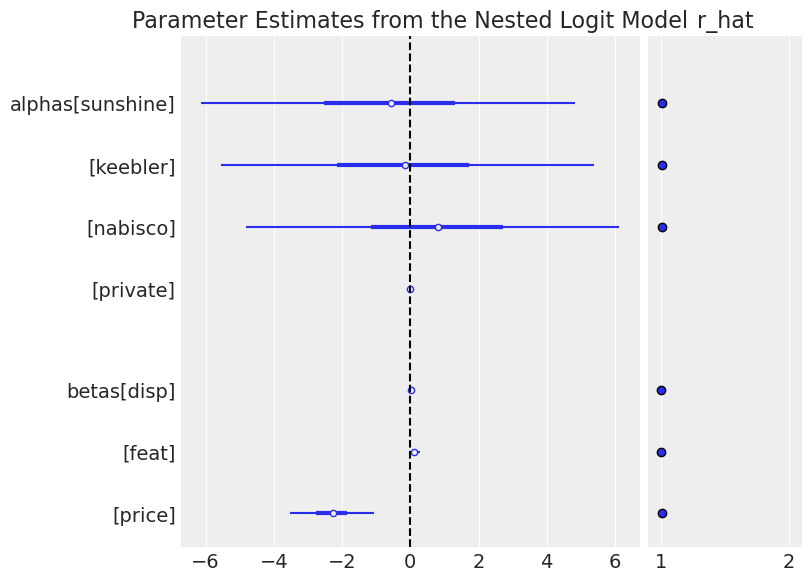

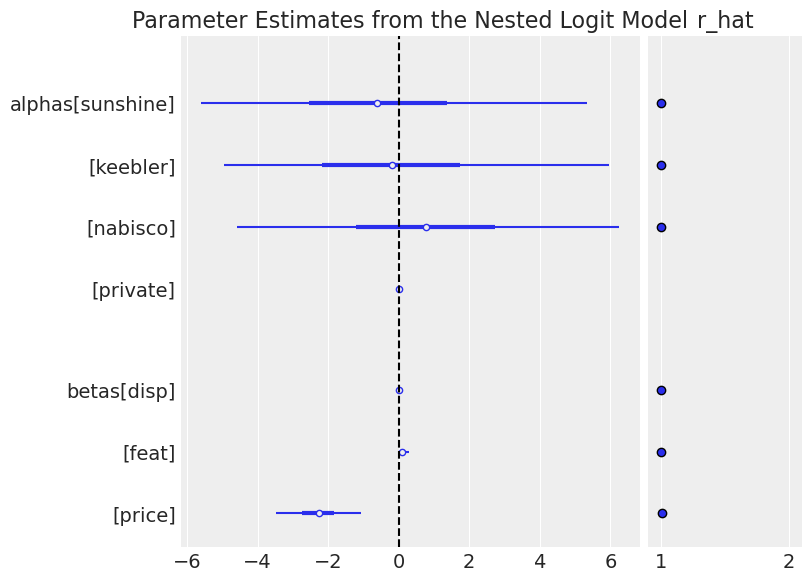

ax = az.plot_forest(
    nstL_3.idata,
    var_names=["alphas", "betas"],
    combined=True,
    r_hat=True,
)
ax[0].axvline(0, color="k", linestyle="--")
ax[0].set_title("Parameter Estimates from the Nested Logit Model");









/Users/nathanielforde/mambaforge/envs/pymc-marketing-dev/lib/python3.12/site-packages/arviz/stats/diagnostics.py:596: RuntimeWarning: invalid value encountered in scalar divide
  (between_chain_variance / within_chain_variance + num_samples - 1) / (num_samples)




../../_images/b0de9ffa7663935b476e2a8febb5a21075ddbb86a8611edee8a90b3be7367eac.png






This model suggests plausibly that price increases have a strongly negative effect of the purchase probability of crackers. However, we should note that we’re ignoring information when we use the nested logit in this context. The data set records multiple purchasing decisions for each individual and by failing to model this fact we lose insight into individual heterogeneity in their responses to price shifts. To gain more insight into this aspect of the purchasing decisions of individuals we might augment our model with hierarchical components or switch to alternative Mixed logit model.






Choosing a Market Structure#


Causal inference is hard and predicting the counterfactual actions of agents in a competitive market is very hard. There is no guarantee that a nested logit model will accurately represent the choice of any particular agent, but you can be hopeful that it highlights expected patterns of choice when the nesting structure reflects the natural segmentation of a market. Nests should group alternatives that share unobserved similarities, ideally driven by a transparent theory of the market structure. Well-specified nests should show stronger substitution within nests than across nests, and you can inspect the substitution patterns as above. Ideally you can always try and hold out some test data to evaluate the implications of your fitted model. Discrete choice models are causal inference models and their structural specification should support generalisable inference across future and counterfactual situations.






%load_ext watermark
%watermark -n -u -v -iv -w -p pytensor









Last updated: Mon Jan 19 2026

Python implementation: CPython
Python version       : 3.12.12
IPython version      : 9.8.0

pytensor: 2.36.3

pandas        : 2.3.3
pymc_marketing: 0.17.1
matplotlib    : 3.10.8
pymc_extras   : 0.6.0
arviz         : 0.23.0

Watermark: 2.5.0
